Rigging Pocket Guide

KNOW HOW, KNOW WHY, GET TRAINED

(941) 730-6576

www.amcands.com

Table of Contents

RISK MANAGEMENT

Safety Information That You Need

At the heart of any effective safety program is a constant effort to ensure that employees have the proper knowledge and skill for all aspects of their job. Rigging and lifting clearly is an operation that has been shown to require knowledge and skills. Accidents also can harm your companies’ brand and reputation. Having a well-trained lift team can help mitigate, and possibly eliminate some of the hazards associated with using cranes. A safe lift depends on a number of people filling roles including operators, riggers, journeyman riggers, signal persons, crane owners, crane users, lift directors, supervisors, and the communication between those people.

Table of Contents

SLING INSPECTION REQS

B30.9-1.9.1-3 Slings shall be inspected by:

A qualified person as to whether it constitutes a hazard. And if so, what additional steps need to be taken to address the hazard and how it can be eliminated. And, shall have a thorough education, training, experience, skill and physical ability, as necessary, be competent and capable to perform the functions as determined by the employer or employer’s representative. Sling working load limits (WLL) are based on items being in acceptable condition before being used per ASME B30.9, OSHA 1910.184 and the manufacturer’s recommendations and limitations for use.

Working Load Limit (W.L.L)

The MAXIMUM load that shall be applied in direct tension to undamaged straight length of a sling or hoisting equipment.

WLLS are based on the following factors:

  1. Type of hitch being used
  2. Material strength
  3. Design factor
  4. Angle of loading
  5. Diameter of the object (D/d)
  6. Manufacturer’s limitations

Table of Contents

WARNING/MFG RESPONSIBILITIES

Safety Warnings:

Are of the utmost importance and anyone purchasing and using items must understand all warnings and other information on the product being used. Products are sold with express understanding that the purchaser is thoroughly familiar with the correct application and safe use for which they were intended.

Remember:

Any product will break if abused, misused or overused. Any well-designed and well-built product can become a hazard in the hands of careless users. It is impossible to list all of the possible dangers and misapplications associated with the use of products.

Minimum sling inspection intervals:

  1. Prior to each use
  2. Beginning of each shift
  3. Monthly to quarterly depending on severity of use by a designated competent person
  4. Annually by a dedicated, competent person

ASME B30.9-1.7.1 2018 sling identification requirements that shall be permanently affixed to the sling:

  1. Manufacturer’s name
  2. Sling size
  3. Sling grade (chain and wire rope) materials used (web and round slings)
  4. Sling reach (chain)
  5. Working load limit and the angle upon which its based
  6. Number of branches if more than one

Table of Contents

SLING REMOVAL CRITERIA

SLING REMOVAL CRITERIA FOR: WEB, ROUND, WIRE AND CHAIN SLINGS

  1. Missing, or illegible identification or tag
  2. Evidence of heat damage, or caustic, or acid burn
  3. Melting, or charring (synthetic)
  4. Holes, tears, cuts, or snags (synthetic)
  5. Visible red threads (web slings)
  6. Weld spatter
  7. Broken or worn stitching (synthetic)
  8. Excessive abrasive wear
  9. Knots
  10. Discoloration and brittle or stiff areas (synthetic)
  11. Fittings that are pitted, corroded, cracked, bent twisted, deformed, gouged, broken, or wear of more than 10%
  12. Increase in the reach dimension or stretched (chain)
  13. Lack of ability of the fittings to hinge freely
  14. Broken wires for strand-laid single-part wire rope slings, 10 randomly distributed broken wires, or 5 broken wires in one strand in one rope lay, or 1 core or (valley break), or 1 broken wire at a fitting
  15. Kinking, crushing, birdcaging, or other damage resulting in damage to the rope structure (wire rope slings)
  16. Hooks for wear ASME B30.10
  17. Rigging hardware removal ASME B30.26
  18. Other conditions including visible damage, that may cause doubt as to the continued use of the sling

NOTE: A MISSING TAG IS CONSIDERED A REPAIR B30.9 SLING REPAIR SHALL ONLY BE DONE BY THE SLING MANUFACTURER OR QUALIFIED PERSON AND SHALL COMPLY WITH PROOF LOAD REQUIREMENTS.

Table of Contents

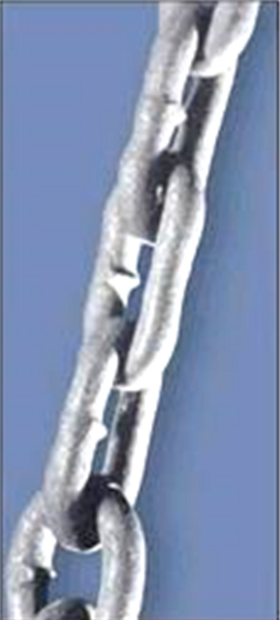

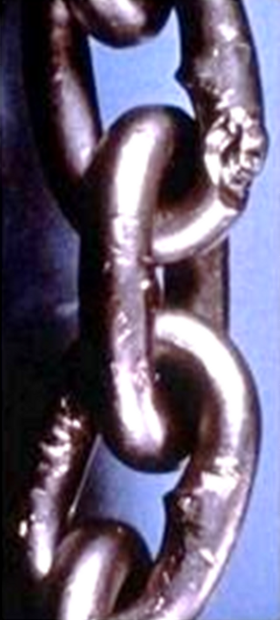

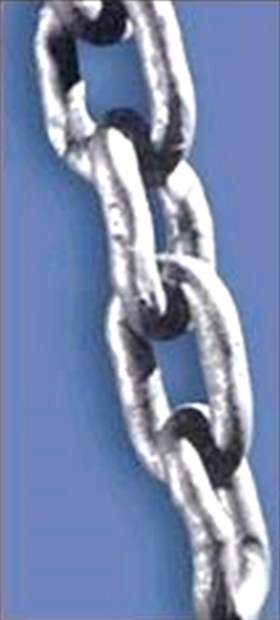

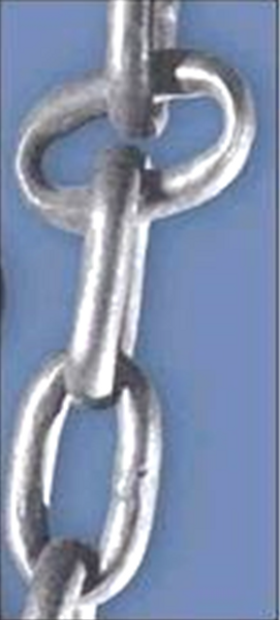

CHAIN LINK DAMAGE SAMPLES

Table of Contents

CHAIN REACH DIMENSION

CHAIN IDENTIFICATION REQUIREMENTS

With the following information on the tag

Table of Contents

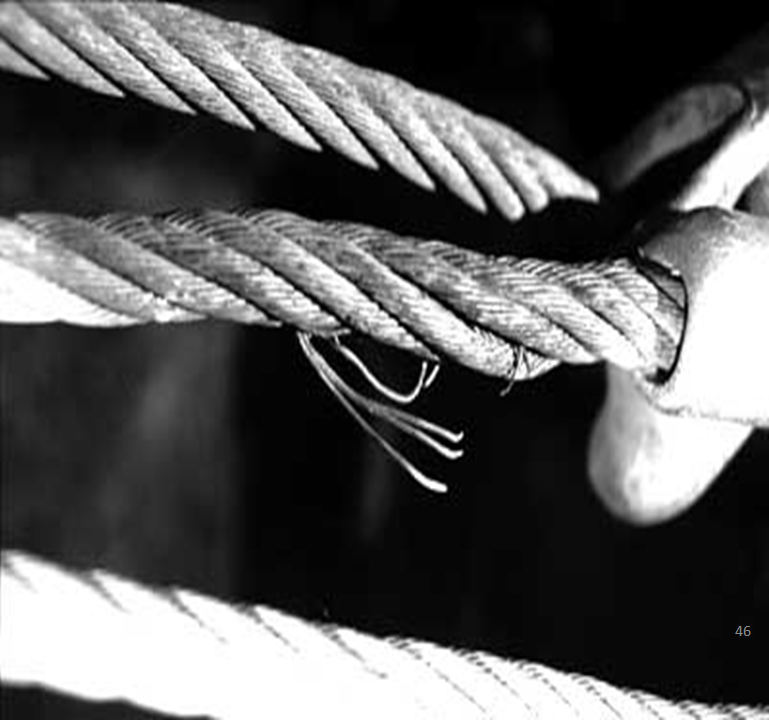

VALLEY BREAK & LAY OF A WIRE ROPE

THIS IS A VALLEY BREAK

This happens when wire fractures between the strands coming from the core it is usually caused by a shock load

Just 1 broken wire requires the sling to be removed from service!

Wire Rope is a "Machine" with many moving parts

Table of Contents

HARDWARE REMOVAL CRITERIA

THE FOLLOWING ITEMS ARE CONSIDERED RIGGING HARDWARE ASME B30.26

TURNBUCKLES, EYEBOLTS, EYE NUTS, SWIVEL HOIST RINGS, WIRE ROPE CLIPS, WEDGE SOCKETS, LINKS, RINGS, SWIVELS, SHACKLES AND RIGGING BLOCKS

ASME B30.26

Identification Requirements

Rejection Criteria:

  • Illegible or missing identification
  • Any distortion, bends, twists, stretching, elongation, cracking
  • Nicks & gouges
  • Heat damage
  • Thread damage
  • Wear 10% of original diameter
  • Corrosion or pitting
  • Modifications

Table of Contents

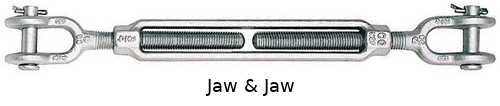

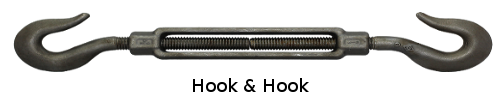

TURNBUCKLE CAPACITY


WORKING LOAD LIMIT (lbs.)
 End Fitting Types
Size
(Inches)
Hook & Eye
Hook & Hook
Eye & Eye
Eye & Jaw
Jaw & Jaw
1/4400500
5/16700800
3/81,0001,200
1/21,5002,200
5/82,2503,500
3/43,0005,200
7/84,0007,200
15,00010,000
1-1/46,50015,200
1-1/27,50021,400
WARNING
TURNBUCKLES TO BE USED FOR
IN-LINE LOADING ONLY

Table of Contents

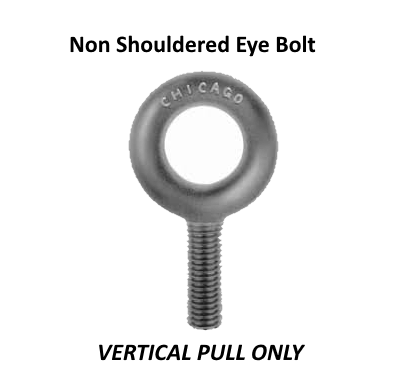

EYE BOLT USE AND CAPACITY

EYEBOLTS AND SWIVEL HOIST RINGS


Table of Contents

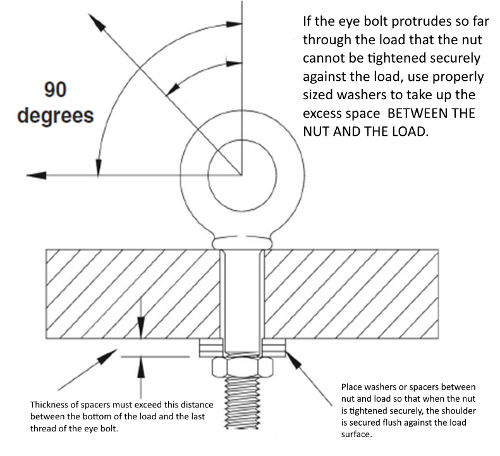

EYE BOLT USE AND CAPACITY

EYEBOLTS AND SWIVEL HOIST RINGS

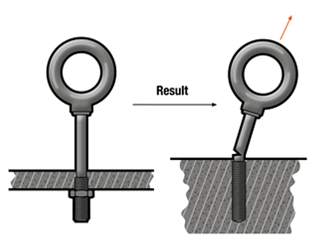

This is what happens when shouldered eyebolts are not completely attached to the material.

EYEBOLTS MAXIMUM TEMPERATURE 275°

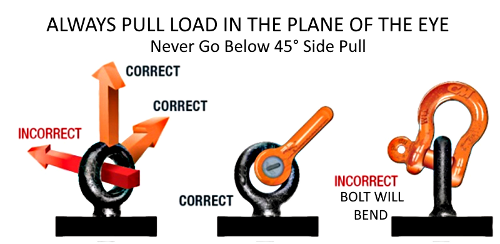

THIS IS A SHOULDERED EYEBOLT IT CAN BE PULLED IN THE PLANE OF THE EYE AT NO GREATER THAN 45° AND HAS ONLY 25% OF ITS CAPACITY

Table of Contents

SHOULDER EYE BOLTS

SHOULDER EYE BOLTS WORKING LOAD LIMIT

ANGLE TO HORIZONTAL

WARNING
DO NOT USE AT ANGLE LESS THAN 45°
Size
(in.)
WORKING LOAD LIMIT (lbs.)
0° True Vertical75° 55% of FULL WLL65° 35% of FULL WLL45° 25% of FULL WLL
1/4x20500275175125
5/16x18900495315225
3/8x161,300715455325
7/16x141,800990630450
1/2x132,4001,320840600
5/8x114,0002,2001,4001,000
3/4x105,0002,7501,7501,250
7/8x97,0003,8502,4501,750
1x89,0004,9503,1502,250
1-1/8x712,0006,6004,2003,000
1-1/4x715,0008,2505,2503,750
1-1/2x621,00011,5507,3505,250

Table of Contents

SWIVEL HOIST RINGS


MUST BE ABLE TO ROTATE 360° AND PIVOT 180°

Table of Contents

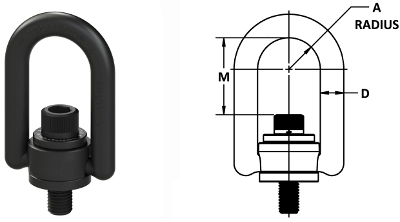

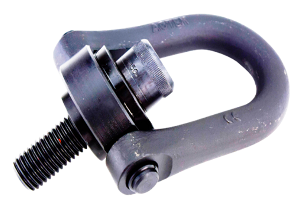

HOIST RING

HEAVY DUTY FORGED HOIST RING

Size
(in.)
Rated Load (lbs.)Torque Load (lbs-ft)Dimensions (in.)
ADM
1/4-2050050.650.441.57
5/16-1880070.650.441.51
3/8-161,000120.650.441.45
1/2-132,500281.000.752.56
5/8-114,000601.000.752.44
3/4-105,0001001.000.752.31
3/4-107,0001001.001.002.31
7/8-98,0001601.401.003.07
1-810,00042301.401.002.95
1-1/4-715,0004701.401.003.74
1-3/8-620,0006702.001.253.62
1-1/2-624,0008002.001.253.49
2-4-1/230,0008002.001.253.49
2-830,0008002.001.253.49

Table of Contents

WIRE ROPE CLIPS

Rope Diameter (in.)No. of ClipsTurnback (in.)Torque (ft-lbs)(unlubed bolts)
1/823-1/44-1/2
3/1623-3/47-1/2
1/424-3/415
5/1625-1/430
3/826-1/245
7/162765
1/2311-1/265
9/1631295
5/831295
3/44618130
7/8420225
1526225
WARNING
NEVER INSTALL THE U-BOLT ON THE LIVE SIDE

Table of Contents

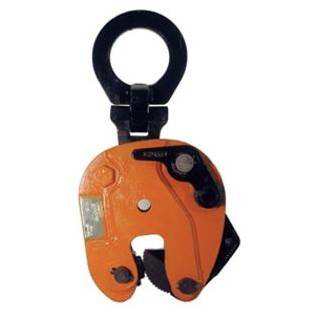

VERTICAL PLATE CLAMPS

Table of Contents

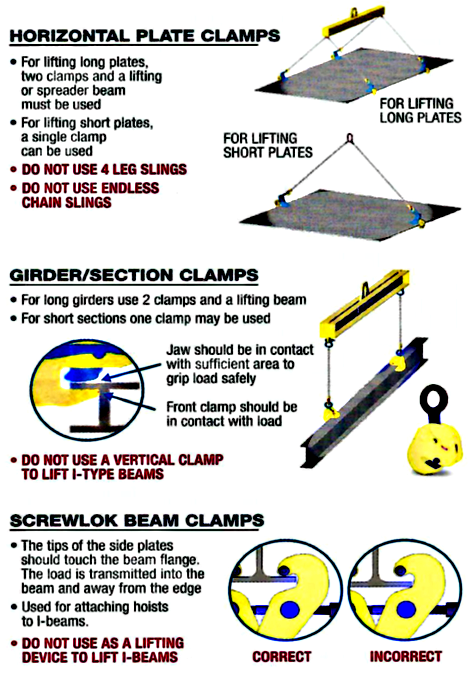

PLATE CLAMPS

Table of Contents

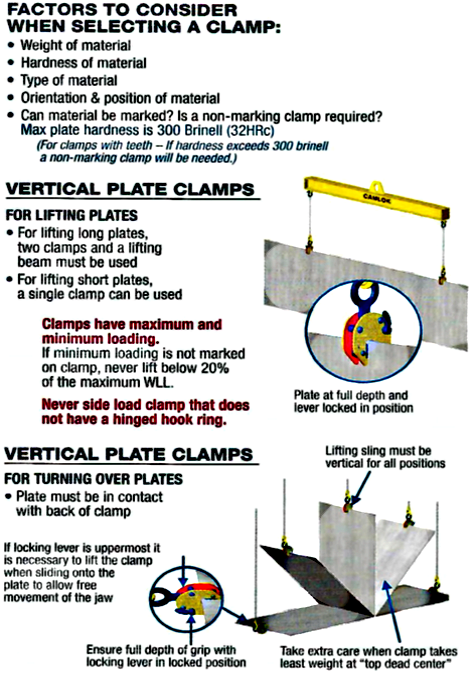

VERTICAL PLATE CLAMPS

Vertical Plate Lifting Clamps

  1. Lift and turn over flat plate 180º or transport in the vertical position.
  2. For short plates one clamp can be used to lift.
  3. For long plates use a beam with vertical slings on each end connected to each clamp.
  4. Avoid lifting load 20% below the rated capacity of the side of the clamp.
  5. Select a clamp as close to the max loading as possible, this will insure full penetration of teeth into plate.
  6. Max surface 300 Brinell/32 RC. Do not lift plates harder than the teeth of clamp.

Table of Contents

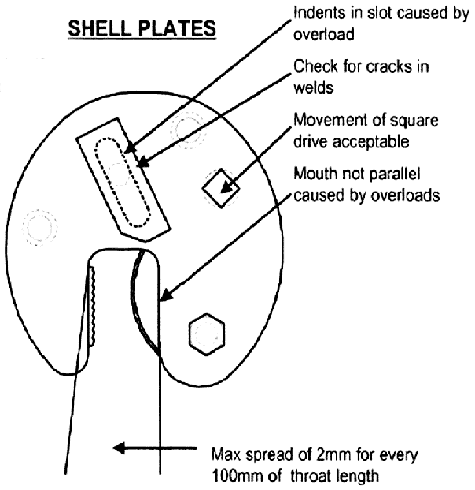

SHELL PLATES

BOLTS: All bolts should have sufficient plain length to pass through half the component. Check integrity & tightness.

NUTS: All nuts when tightened should have 2 threads protruding. All nits should be locked with Loctite grade 270, nylon insert, or self-cleaving. Check for integrity & tightness.

CHAIN: All chain should be tested in accordance with ASME B30.9 recommendations.

Table of Contents

SHELL PLATES

Table of Contents

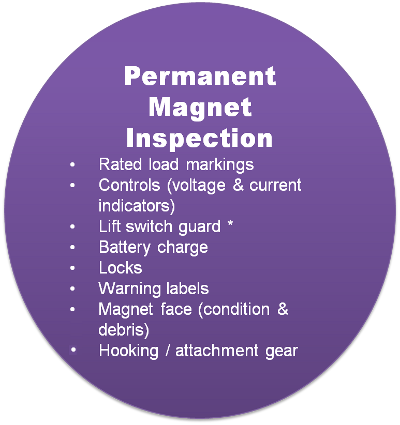

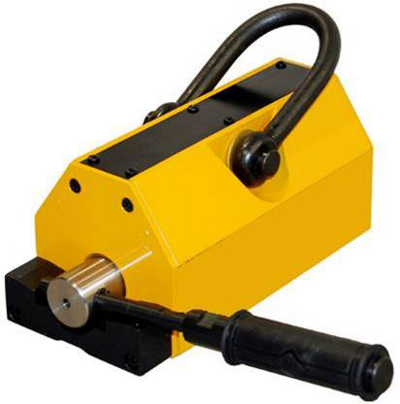

LIFTING MAGNETS

There have been recent changes to magnet inspections and testing that everyone needs to be aware of. The ASME 820.20-2018 standard states Lifting Magnets should have an annual Breakaway Test to verify the magnet meets its design factor.

Table of Contents

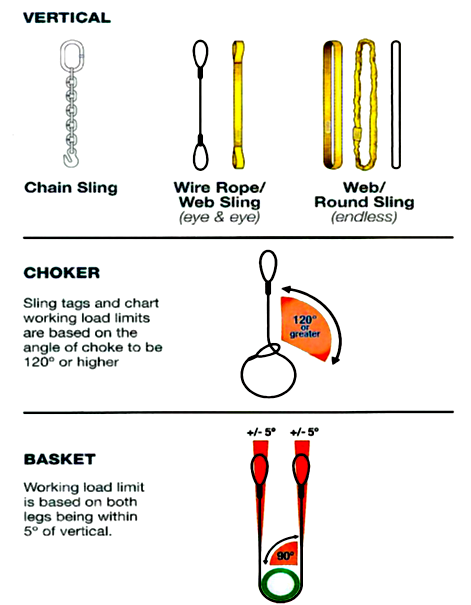

BASIC SLING HITCHES

Table of Contents

HITCH CAPACITY

ANGLE OF CHOKE

Table of Contents

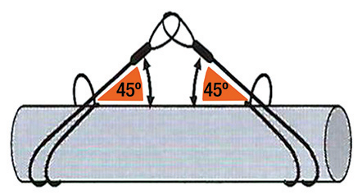

SLING CHOKE ANGLES

Maximum angle for 2 slings in a choke

Maximum angle for 2 slings in a double wrapped choke

Table of Contents

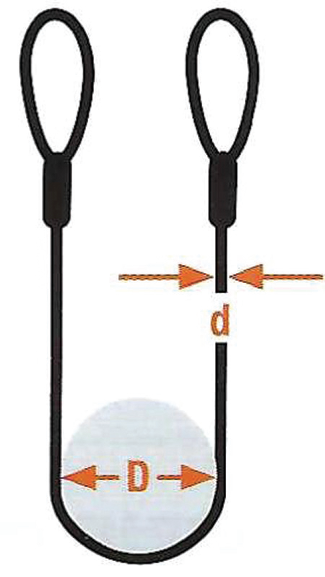

TENSION AND D/d RATIO

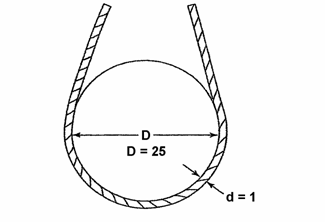

WIRE ROPE SLING D/d RATIO

GENERAL NOTE: When D is 25 times the component rope diameter (d), the D/d ratio is expressed as 25/1.

Table of Contents

ROPE SLING CAPACITY REDUCTIONS

WIRE ROPE SLING BASKET REDUCTIONS

D/d RatioCapacity
25/1100%
20/192%
10/186%
4/175%
2/165%
1/150%

Table of Contents

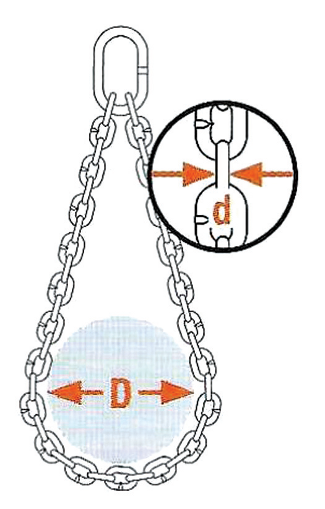

D/d CHAIN SLINGS

ALLOY LIFTING CHAIN BASKET REDUCTIONS

D/d RatioCapacity
6/1100%
5/190%
4/180%
3/170%
2/160%
1/1Not Recommended

Table of Contents

MINIMUM SLING ANGLES

SLING ANGLES OF LESS THAN 30 DEGREES SHALL NOT BE USED


Table of Contents

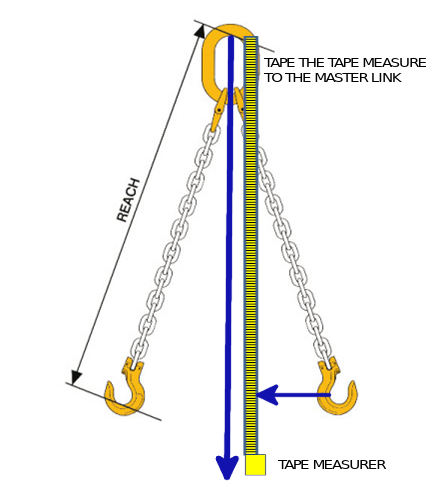

2 OR MORE SLINGS

USING 2 OR MORE SLINGS MEANS YOU NEED TO CALCULATE TENSION

This tension is also referred to as the
LOAD ANGLE FACTOR (L.A.F.)
IT IS CALCULATED BY DIVIDING THE S OR SLING LENGTH BY THE H OR HEIGHT TO THE SAME POINT ON THE SLING

WARNING
ALWAYS MAKE SURE TO VERIFY THE CAPACITY ON THE SLING YOU ARE USING, IT MAY VARY FROM THE SLING CAPACITY IN THIS BOOKLET

Table of Contents

LOAD ANGLE FACTOR

Since 30° is the lowest horizontal sling angle that you can use when rigging, the horizontal angles on this table below start at 30°

Horizontal AngleLoad Factor Angle
30°2
35°1.742
40°1.555
45°1.414
50°1.305
55°1.221
60°1.155
65°1.104
70°1.064
75°1.035
80°1.015
85°1.004
90°1

Table of Contents

SHACKLE & SLING USE

USING MULTIPLE SLINGS

Multiple slings within the body of the shackle shall not exceed 120° included angle


The maximum included angle with two or more slings is listed below for hooks, master links and shackles.

Connections
Hooks 90°Master links 120°Shackles 120°

Table of Contents

HOOKS

ASME B 30.10 - HOOKS

Hooks having any of the following conditions shall be removed from service until repaired or replaced:

  1. Deformation - any visibly apparent bend or twist from the plane of the unbent hook
  2. Throat Opening - Any distortion causing an increase in throat opening of 5%, not to exceed ¼” or as recommended by the manufacturer
  3. Wear - Any wear exceeding 10% (or as recommended by the manufacturer) of the original section dimension of the hook or its load pin

Table of Contents

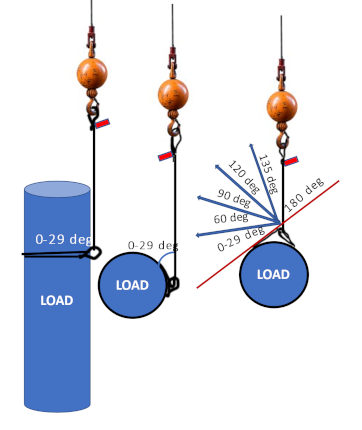

WLL REDUCTIONS

When sideloading a shackle with a single leg, the WLL will need to be reduced in accordance with the manufacturer's recommendations.


Angles in DegreesWorking Load Limit Reduction
0° to 10°0%
11° to 20°15%
21° to 30°25%
31° to 45°30%
46° to 55°40%
56° to 70°45%
71° to 90°50%
WARNING
NEVER SIDE LOAD ROUND PIN SHACKLES

Table of Contents

SHACKLES

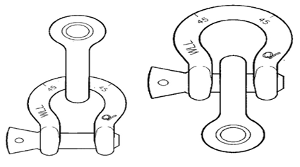

Shackles can be connected together, or point loaded

Always attach the slings to the bow of the shackle, pin in the hook

The bow of the shackle should always be in the running part of the sling pin in the eye of the sling

When using a single sling, load should stay centered or capacity reductions are necessary

When using in a wire rope sling always use the next size larger

The shackle must be the next size larger than the wire rope sling diameter to achieve full capacity of the sling

Table of Contents

SHACKLE AND PIN INSPECTION

Tightening the Pin in a Screw Pin Shackle

ASME B30.26 has the following statement regarding screw pin shackles:
The screw pin threads shall be fully engaged and tight and the shoulder should be in contact with the shackle body.
Thus, contrary to popular belief, you should never back off the screw pin before use. The shackle pin should be a minimum of hand tight before the lift begins.

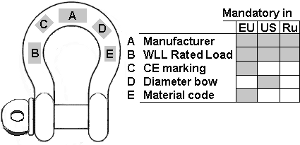

SHACKLE INSPECTION

Table of Contents

SHACKLES

CARBON

Shackles are designed and rated for in-line applied tension. You can attach multiple slings in the body of the shackle without reducing the capacity, provided that the shackle is symmetrically loaded and the included angle does not exceed 120°.

Size (in.)WLL (tons)WLL (lbs.)Pin Diameter (in.)W dim. (in.)
3/161/36670.250.38
1/41/21,0000.310.47
5/163/41,5000.380.53
3/812,0000.440.66
7/161-1/23,0000.500.72
1/224,0000.630.84
5/83-1/46,5000.751.06
3/44-3/449,5000.881.28
7/86-1/213,0001.001.44
18-1/217,0001.131.72
1-1/89-1/219,0001.251.84
1-1/41224,0001.382.03
1-3/813-1/227,0001.502.25
1-1/21734,0001.632.41
1-5/82040,0001.752.66
1-3/425550,0002.002.94
23570,0002.253.28
2-1/255110,0002.754.13
385170,0003.255.00
3-1/2120240,0003.755.50

Table of Contents

SLING PROTECTION

Shackles can be used to connect slings

WARNING
NEVER TIE SLINGS TOGETHER
OR DIRECTLY TO LIFTING BOLTS/LUGS

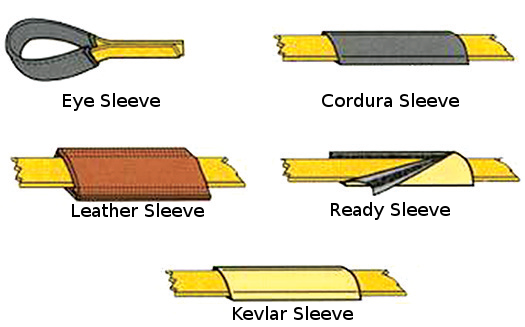

It's the user's responsibility to protect the sling from the load

Sharp edges and corners can cut slings causing sling failure and damage

Padded material can help protect the sling

Changing the corner profile can help

Table of Contents

SLING MAXIMUM TEMPERATURES

ROUND SLINGS 194°F

WEB SLINGS 194°F

IWRC (INDEPENDENT WIRE ROPECORE) WIRE ROPE SLING 400°F

FIBER CORE WIRE ROPE SLING 180°F


CHAIN

Table of Contents

SLING PROTECTION

IT'S THE USER'S RESPONSIBILITY TO PROTECT EVERY SLING FROM THE LOAD


ASME B-30.9 Standard for slings states that “…Sling users SHALL be trained in the selection, inspection, cautions to personnel, effects of environment, and rigging practices…”

Table of Contents

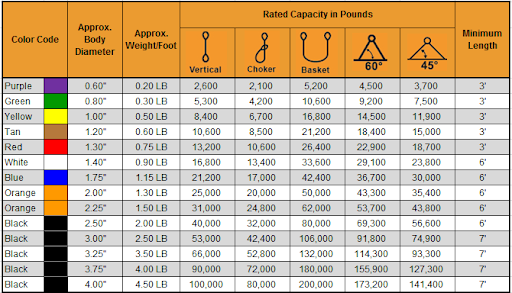

SLING CAPACITIES

Sling Capabilities In Pounds

Table of Contents

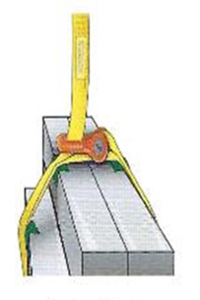

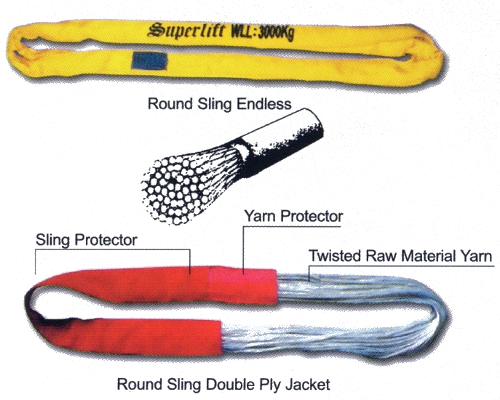

ROUND SLING STRENGTH

NOTE: Round sling strength is affected by the size of the connection hardware. For special applications wherein a Retained design factor of 5 is required to be maintained, contact the sling manufacturer, as a capacity reduction of 20% may be appropriate in order to satisfy this criteria.

Table of Contents

ROUND SLINGS AND SHACKLES

TYPICAL ROUND SLING ANATOMY

SHACKLE SIZE IS IMPORTANT
AND
NEVER EVER
STACK THE SLINGS ON TOP OF ONE ANOTHER

Table of Contents

SLING BEARING SURFACES

NOTE: Round sling strength is affected by the size of the connection hardware. For special applications wherein a Retained design factor of 5 is required to be maintained, contact the sling manufacturer, as a capacity reduction of 20% may be appropriate in order to satisfy this criteria.

Table of Contents

RIGHT TRIANGLE AND WEDGE SOCKETS

CALCULATING DIMENSIONS OF A RIGHT TRIANGLE


Proper Use of Wedge Sockets

Table of Contents

RESPONSIBILITIES OF THE RIGGER

OUTRIGGER SUPPORT IS A DUAL RESPONSIBILITY OF THE LIFT DIRECTOR AND THE CRANE OPERATOR

Table of Contents

RIGGER RESPONSIBILITIES

  1. a site assessment for hazards in the surroundings such as but not limited to electrical, steam, vehicles, personnel, roads, ground conditions, pedestrian traffic, narrow aisles, drop-offs, debris, floor obstructions, overhead obstructions and environmental conditions.
  2. ensuring the weight of the load and its approximate center of gravity have been obtained, provided, or calculated.
  3. selection of the proper rigging equipment, inspecting it and complying with the applicable operating practices according to OSHA, ASME and the manufacturer of the equipment.
  4. ensure the rated load if the rigging equipment is sufficient for the load being lifted, based on the number of legs, hitch configuration, angles, manufacturers limitations and environment.
  5. ensure all rigging is properly attached to hooks, shackles, slings or other load handling devices.
  6. ensure all rigging equipment is adequately protected from abrasion, cutting, or other damage during load handling activity.
  7. the load is rigged in a manner to ensure balance and stability during the lift activity.
  8. knowing and understanding the applicable signals for the equipment in use.
  9. installing and using a tag line or taglines when load control is required.

Table of Contents

ESTIMATING LOAD WEIGHTS

Table of Contents

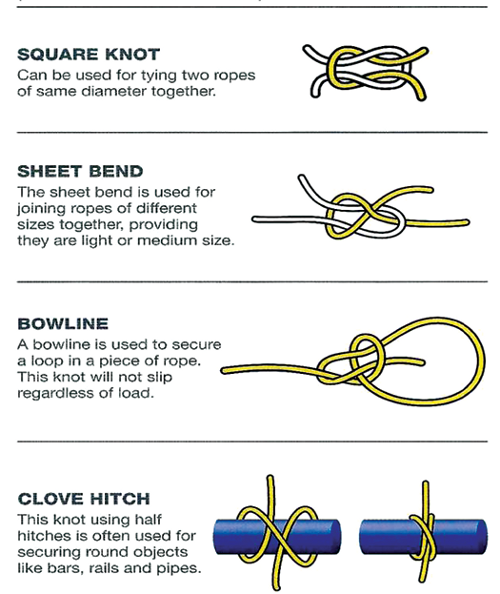

BASIC KNOTS

FOR USE WITH ROPE ONLY

TYPICALLY USED FOR TAGLINES
(DO NOT TIE KNOTS IN SLINGS)

Table of Contents

POWER LINE AWARENESS

DEDICATED SPOTTER

If the equipment and or attachments are within 20’ of the 360 degree reach of the crane, a dedicated spotter must be used and:

  • Positioned to effectively gauge the clearance (distance) from the line.
  • Give timely information to the operator to avoid the crane breaching the safe distance from the line.
  • He/She must be a trained spotter that has been evaluated. Their sole job is to watch the crane and the power line.
Voltage (nominal, kV, alternating current) Minimum clearance distance (feet)
up to 50 10
over 50 to 200 15
over 200 to 350 20
over 350 to 500 25
over 500 to 750 35
over 750 to 1,000 45
over 1,000 (as established by the utility owner/operator or registered professional engineer who is a qualified person with respect to electrical power transmission and distribution)

Note: The value that follows "to" is up to and includes that value. For example, over 50 to 200 means up to and including 200kV.

Section 1926.1409

Power line safety (over 350kV)

The requirements of S 1926.1407 and 1926.1408 apply to power lines over 350 kV except:

a) For power lines at or below 1000kV, wherever the distance "20 feet" is specified, the distance "50 feet" must be substituted; [S 1926.1409(a)]

b) For power lines over 100kV, the minimum clearance distance must be established by the utility owner/operator or registered professional engineer who is a qualified person with respect to electrical power transmission and distribution. [S 1926.1409(b)

Table of Contents

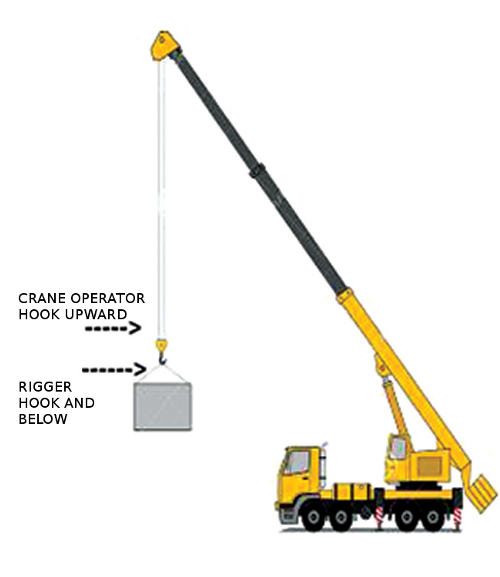

LOAD STABILITY & CENTER OF GRAVITY

OSHA SAY’S IT’S USERS RESPONSIBILITY TO STAY OUT OF THE WAY OF THE LOAD

THE CLOSEST YOU SHOULD GET IS ARMS REACH

Have you performed a TEST LIFT to verify stability?

Properly Rigging to the Center of Gravity

It is important that the CG is directly under the crane hook.
STABLE
The hook lift point is directly above the CG.
Lift points are ABOVE the CG.

Table of Contents

SHOCK LOADING & MANUAL HOIST

Safe Hoist and Crane Operations

Smooth, steady application of lifting force

  • Allows hoist and rigging to adjust to change
  • Minimizes spin
  • Reduces wear on wire and synthetic rope

NO Shock loading - A 4" DROP TRIPLES THE LOAD

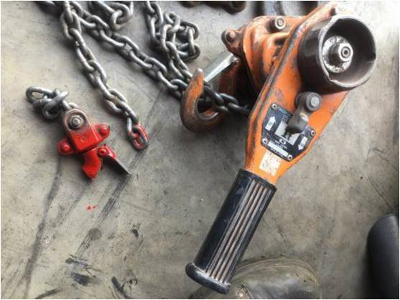

MANUAL HOIST

NEVER WRAP THE CHAIN AROUND THE LOAD

THIS IS WHAT CAN HAPPEN IF YOU WRAP THE CHAIN AROUND THE LOAD
THESE HOISTS ARE ONLY MADE FOR A STRAIGHT PULL
USE SLINGS AROUND THE OBJECT BEING LIFTED

Hooks on Hoists

Required ASME B30.16/B30.21

Hooks shall be equipped with latches unless use of the latch creates a hazardous condition

Table of Contents

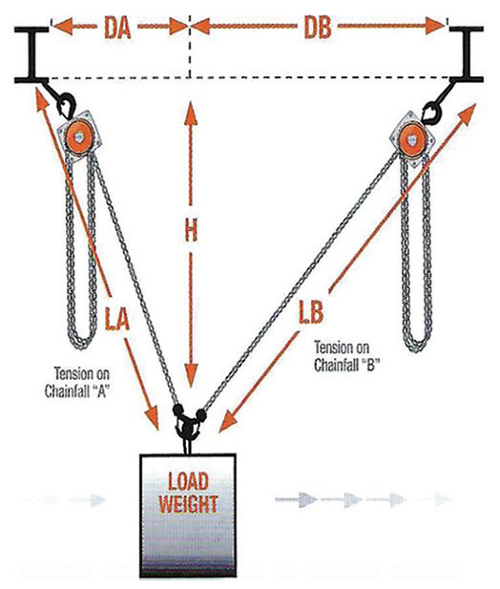

DRIFTING LOADS

THESE CHAIN FALLS ARE HOOKED AT THE BOTTOM TO THE SAME SHACKLE, BUT THE ONE ON THE RIGHT OR THE (DB) IS A GREATER DISTANCE SO IT HAS A LARGER LOAD ANGLE FACTOR.

THE LB ÷ H GIVES YOU THE LOAD ANGLE FACTOR FOR THE RIGHT SIDE.
THE LA ÷ H GIVES YOU THE LOAD ANGLE FACTOR FOR THE LEFT SIDE.

Table of Contents

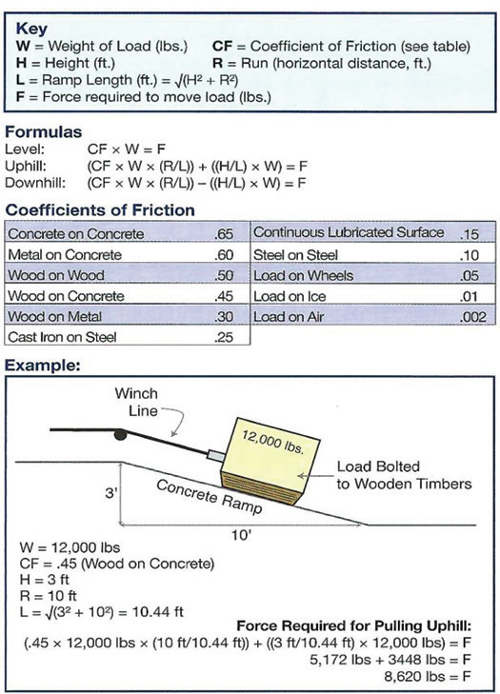

CO-EFFICIENCY OF FRICTION

Level & Incline Planes

Table of Contents

RIGGING PLANS

  1. The head director must communicate to all personnel involved in the lift the lift sequence and complete process.
  2. Verify or determine center of gravity of load.
  3. Verify or determine weight of load.
  4. Choose slings and rigging hardware that will provide sufficient capacity and load control. Use a tag line when necessary.
  5. Ensure slings and rigging hardware are properly aligned or used correctly.
  6. All rigging gear must be inspected prior to making the lift.
  7. Determine exactly how the load will be lifted, moved and set down.
  8. Consider any special environmental conditions, *wind, *heat/cold/ice (what effect do they have), *corrosive atmosphere.
  9. Determine manpower requirements for the rigging crew.
  10. Identify obstructions and hazards, *Power Lines, *Live chemical, Steam lines, *Traffic control, *Tight fits, *Pinch points.
  11. Everyone involved with lift must: *Review plan, *Understand their role and *Sign off before lift begins.

Table of Contents

CRITICAL LIFT PLANS

29 CFR 1926, SUBPART N ANSI/
ASME B-30.7 SERIES

RESPONSIBILITIES

Management Responsibilities

  • Make determinations of critical lifts
  • Provide supervisor & employee training
  • Provide safe and proper equipment for critical lifts
  • Provide inspection procedures

Supervisors Responsibilities

  • Follow guidelines and inspection procedures
  • Supervise all critical lifts
  • Ensure employees have adequate operational knowledge & experience
  • Immediately remove from service any equipment that fails inspection

Employees Responsibilities

  • Follow lifting & rigging procedures
  • Immediately report any problems with equipment of procedures
  • Not attempt any critical lifts unless authorized & approved assigned the PIC or (person in charge) need not be in the manager’s organization.

Table of Contents
